XM 1700 SPLINE®

High end aluminium all mountain wheel - optimized for a versatile riding style.

  • MSRP per set US$ from $ 886
  • Weight per set from 1748 g
Product details

Product details

The best aluminium all mountain wheels. Period. That is what we designed the XM 1700 SPLINE wheels to be. Whether this is actually the case is up to you to decide. But we have given it everything needed to dominate the mountain. Light and robust welded rims, perfect tubeless compatibility for grip and puncture resistance as well as our reliable hubs with RATCHET freehub and a 36 tooth engagement. Equipped with the XM 1700 SPLINE nothing can stop you from your personal all mountain adventure.

  • Hub type 350 with Ratchet System 36 SL
  • Rim Aluminum, Tubeless crotched/clincher TC
  • Inner width 30 mm
  • Spokes DT competition® straightpull
Rim The 30 mm rim width offers ideal tyre support for modern MTB tyres.
hub The redesigned 350 hub is now equipped with a 36 Ratchet SL System.
nipple DT Pro Lock Squorx nipples contributes to longevity.
end caps The incorporated notch in the end cap simplifies disassembly.
Technologies

XM 1700 Spline
What would you build?

We had a close look at the components mountain bikers of various disciplines use to build their own wheels.

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Ratchet System
Technology

Read

Tubeless
Technology

Read

Prolock
Technology

Read

PHR
Technology

Read

engagement angle
technology

Learn more
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

02

Inner width

03

Axle system

04

Built-in dimension

05

Freehub body

06

Brake interface

There are 8 models of this product.
Show all
Hide all
REAR WHEEL

XM 1700 SPLINE 29 - 30 mm CL 12/148 mm Shimano

WXM1700TED2SA11568
General
  • Net weight 973 g
  • recommended system weight max. 120 kg
  • ASTM classification 4
Rim
  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 29" / 700C
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section
Hub
  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body Shim. 12SP Light (ASL12)
  • Freehub system Ratchet System 36 SL
Spokes & Nipples
  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu
Inclusive
  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB
REAR WHEEL

XM 1700 SPLINE 29 - 30 mm CL 12/148 mm Shimano

WXM1700TEDBSA13806

  • Net weight 966 g
  • recommended system weight max. 120 kg
  • ASTM classification 4

  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 29" / 700C
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section

  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body Shimano Light (ASL)
  • Freehub system Ratchet System 36 SL

  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB

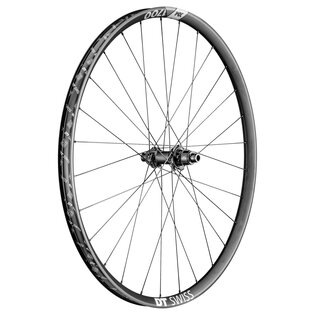

REAR WHEEL

XM 1700 SPLINE 29 - 30 mm CL 12/148 mm Sram

WXM1700TEDRSA11567

  • Net weight 965 g
  • recommended system weight max. 120 kg
  • ASTM classification 4

  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 29" / 700C
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section

  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body SRAM XD MTB (ASRAM)
  • Freehub system Ratchet System 36 SL

  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB

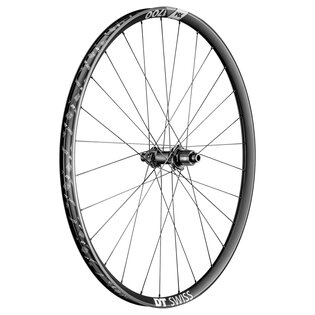

REAR WHEEL

XM 1700 SPLINE 27.5 - 30 mm CL 12/148 mm Shimano

WXM1700TGD2SA11566

  • Net weight 927 g
  • recommended system weight max. 120 kg
  • ASTM classification 4

  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section

  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body Shim. 12SP Light (ASL12)
  • Freehub system Ratchet System 36 SL

  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB

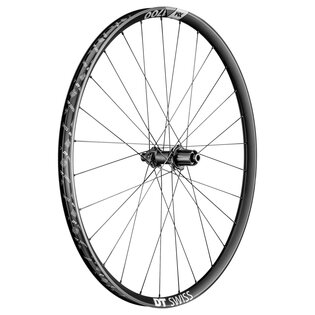

REAR WHEEL

XM 1700 SPLINE 27.5 - 30 mm CL 12/148 mm Shimano

WXM1700TGDBSA13804

  • Net weight 920 g
  • recommended system weight max. 120 kg
  • ASTM classification 4

  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section

  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body Shimano Light (ASL)
  • Freehub system Ratchet System 36 SL

  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB
REAR WHEEL

XM 1700 SPLINE 27.5 - 30 mm CL 12/148 mm Sram

WXM1700TGDRSA11570

  • Net weight 919 g
  • recommended system weight max. 120 kg
  • ASTM classification 4

  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section

  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body SRAM XD MTB (ASRAM)
  • Freehub system Ratchet System 36 SL

  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB

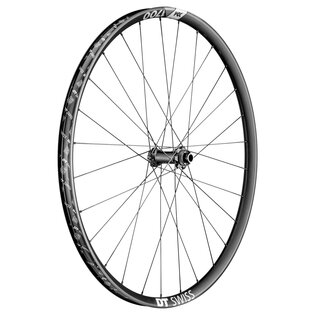

FRONT WHEEL

XM 1700 SPLINE 29 - 30 mm CL 15/110 mm

WXM1700BEIXSA11569

  • Net weight 875 g
  • recommended system weight max. 120 kg
  • ASTM classification 4

  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 29" / 700C
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section

  • Hub type 350
  • Axle system 15 mm Thru Axle
  • Built-in dimension 110 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body -
  • Freehub system -

  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB
FRONT WHEEL

XM 1700 SPLINE 27.5 - 30 mm CL 15/110 mm

WXM1700BGIXSA11565

  • Net weight 829 g
  • recommended system weight max. 120 kg
  • ASTM classification 4

  • Material Aluminum
  • Tire interface Tubeless crotched/Clincher TC
  • Valve hole Presta
  • Rim diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner width 30 mm
  • Outer width 35 mm
  • Cross-section

  • Hub type 350
  • Axle system 15 mm Thru Axle
  • Built-in dimension 110 mm Boost
  • Brake interface Disc Center Lock
  • Freehub body -
  • Freehub system -

  • Spokes left DT competition® Straightpull
  • Spokes right DT competition® Straightpull
  • Spoke pattern Three-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB
Support

Product support

Manuals, spareparts & conversion.

According to your selection XM 1700 SPLINE® we found 8 models. Select the model for which you need product support.
