X 1900 SPLINE^®

Enter the world of XC with a reliable wheelset to focus on the essential moments.

MSRP per set US$ from $ 609
Weight per set from 1844 g

Product details

Enter the Cross Country world with the X 1900 SPLINE. The 25 mm wide aluminum rim offers modern tires the support needed to ride low air pressure in order to minimize rolling resistance. The new Ratchet LN freehub system and meticulous wheel building by hand ensure the highest reliability. This allows riders to just focus on the moment - whether it is beating the sweat out of their opponents or beating their own KOM or QOM.

Hub type 370 with Ratchet LN 18
Rim Aluminum, Hooked / Crotchet tubeless TC
Inner width 25 mm
Spokes DT champion® straightpull

rims Tubeless-capable, sleeved aluminum rims, featuring a specific 25 mm internal width for dynamic accelerations.

hub The X 1900 SPLINE 370 hub is now upgraded to the Ratchet LN freehub system for even higher reliability.

ratchet ln The reliability of the Ratchet System comes from the fact that each tooth engages simultaneously. In comparison, the pawl system has much smaller engagement surfaces.

spokes The 2.0 mm diameter DT champion spoke is made of steel to resist the high radial forces that occur on the wheel from the drive and brake torques.

brkae interface The X 1900 SPLINE is available in centerlock and comes with an IS 6-bolt adapter.

Technologies

For freewheeling moments.

Read

Learn more

Read

Learn more

Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim Diameter

29" / 700C

29" / 700C

02

Inner Width

25 mm

25 mm

03

Axle system

12 mm Thru Axle

12 mm Thru Axle

04

Built-in dimension

142 mm

148 mm Boost

05

Freehub body

06

Brake Interface

There are 7 models of this product.

Show all

Hide all

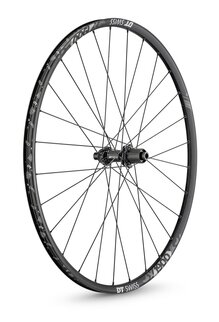

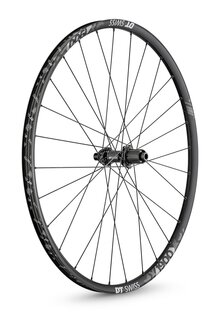

REAR WHEEL

X 1900 SPLINE 29 - 25 mm CL 12/142 mm Shimano

W0X1900NEDLSA18971

General

Net weight 1002 g
recommended system weight max. 110 kg
ASTM classification 3

Rim

Material Aluminum
Rim joint Sleeve joint
Tire interface Hooked / Crotchet tubeless TC
Valve hole Presta
Rim Diameter 29" / 700C
Decal type Waterslide
Inner Width 25 mm
Outer width 29 mm
Cross-section
Zoom image

Hub

Hub type 370
Axle system 12 mm Thru Axle
Built-in dimension 142 mm
Brake Interface Disc Center Lock
Freehub body Shimano Forged (ASF)
Freehub system Ratchet LN 18

Spokes & Nipples

Spokes left DT champion® Straightpull
Spokes right DT champion® Straightpull
Spoke pattern Three-cross (1:1)
Nipples DT Prolock Squorx ProHead alu

Inclusive

Inclusive Tubeless tape 27 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

REAR WHEEL

X 1900 SPLINE 29 - 25 mm CL 12/142 mm Sram

W0X1900NEDRSA20529

Net weight 979 g
recommended system weight max. 110 kg
ASTM classification 3

Material Aluminum
Rim joint Sleeve joint
Tire interface Hooked / Crotchet tubeless TC
Valve hole Presta
Rim Diameter 29" / 700C
Decal type Waterslide
Inner Width 25 mm
Outer width 29 mm
Cross-section
Zoom image

Hub type 370
Axle system 12 mm Thru Axle
Built-in dimension 142 mm
Brake Interface Disc Center Lock
Freehub body SRAM XD MTB (ASRAM)
Freehub system Ratchet LN 18

Spokes left DT champion® Straightpull
Spokes right DT champion® Straightpull
Spoke pattern Three-cross (1:1)
Nipples DT Prolock Squorx ProHead alu

Inclusive Tubeless tape 27 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

REAR WHEEL

X 1900 SPLINE 29 - 25 mm CL 12/148 mm Shimano

W0X1900TED2SA18789

Net weight 992 g
recommended system weight max. 110 kg
ASTM classification 3

Material Aluminum
Rim joint Sleeve joint
Tire interface Hooked / Crotchet tubeless TC
Valve hole Presta
Rim Diameter 29" / 700C
Decal type Waterslide
Inner Width 25 mm
Outer width 29 mm
Cross-section
Zoom image

Hub type 370
Axle system 12 mm Thru Axle
Built-in dimension 148 mm Boost
Brake Interface Disc Center Lock
Freehub body Shim. 12SP Light (ASL12)
Freehub system Ratchet LN 18

Spokes left DT champion® Straightpull
Spokes right DT champion® Straightpull
Spoke pattern Three-cross (1:1)
Nipples DT Prolock Squorx ProHead alu

Inclusive Tubeless tape 27 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

REAR WHEEL

X 1900 SPLINE 29 - 25 mm CL 12/148 mm Shimano

W0X1900TEDLSA18790

Net weight 1006 g
recommended system weight max. 110 kg
ASTM classification 3

Material Aluminum
Rim joint Sleeve joint
Tire interface Hooked / Crotchet tubeless TC
Valve hole Presta
Rim Diameter 29" / 700C
Decal type Waterslide
Inner Width 25 mm
Outer width 29 mm
Cross-section
Zoom image

Hub type 370
Axle system 12 mm Thru Axle
Built-in dimension 148 mm Boost
Brake Interface Disc Center Lock
Freehub body Shimano Forged (ASF)
Freehub system Ratchet LN 18

Spokes left DT champion® Straightpull
Spokes right DT champion® Straightpull
Spoke pattern Three-cross (1:1)
Nipples DT Prolock Squorx ProHead alu

Inclusive Tubeless tape 27 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

REAR WHEEL

X 1900 SPLINE 29 - 25 mm CL 12/148 mm SRAM

W0X1900TEDRSA18806

Net weight 983 g
recommended system weight max. 110 kg
ASTM classification 3

Material Aluminum
Rim joint Sleeve joint
Tire interface Hooked / Crotchet tubeless TC
Valve hole Presta
Rim Diameter 29" / 700C
Decal type Waterslide
Inner Width 25 mm
Outer width 29 mm
Cross-section
Zoom image

Hub type 370
Axle system 12 mm Thru Axle
Built-in dimension 148 mm Boost
Brake Interface Disc Center Lock
Freehub body SRAM XD MTB (ASRAM)
Freehub system Ratchet LN 18

Spokes left DT champion® Straightpull
Spokes right DT champion® Straightpull
Spoke pattern Three-cross (1:1)
Nipples DT Prolock Squorx ProHead alu

Inclusive Tubeless tape 27 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

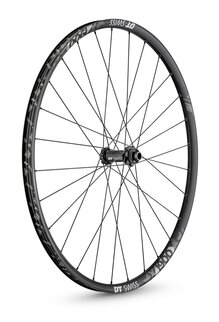

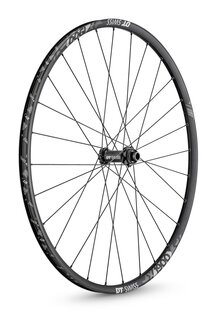

FRONT WHEEL

X 1900 SPLINE 29 - 25 mm CL 15/100 mm

W0X1900AEIXSA18970

Net weight 865 g
recommended system weight max. 110 kg
ASTM classification 3

Material Aluminum
Rim joint Sleeve joint
Tire interface Hooked / Crotchet tubeless TC
Valve hole Presta
Rim Diameter 29" / 700C
Decal type Waterslide
Inner Width 25 mm
Outer width 29 mm
Cross-section
Zoom image

Hub type 370
Axle system 15 mm Thru Axle
Built-in dimension 100 mm
Brake Interface Disc Center Lock
Freehub body -
Freehub system -

Spokes left DT champion® Straightpull
Spokes right DT champion® Straightpull
Spoke pattern Three-cross (1:1)
Nipples DT Prolock Squorx ProHead alu

Inclusive Tubeless tape 27 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

FRONT WHEEL

X 1900 SPLINE 29 - 25 mm CL 15/110 mm

W0X1900BEIXSA18788

Net weight 872 g
recommended system weight max. 110 kg
ASTM classification 3

Material Aluminum
Rim joint Sleeve joint
Tire interface Hooked / Crotchet tubeless TC
Valve hole Presta
Rim Diameter 29" / 700C
Decal type Waterslide
Inner Width 25 mm
Outer width 29 mm
Cross-section
Zoom image

Hub type 370
Axle system 15 mm Thru Axle
Built-in dimension 110 mm Boost
Brake Interface Disc Center Lock
Freehub body -
Freehub system -

Spokes left DT champion® Straightpull
Spokes right DT champion® Straightpull
Spoke pattern Three-cross (1:1)
Nipples DT Prolock Squorx ProHead alu

Inclusive Tubeless tape 27 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB
