E 1900 SPLINE®

Get all the focus you need for your Enduro debut moment with this wheel.

  • MSRP per set US$ from $ 609
  • Weight per set from 1994 g
Product details

Product details

Your entire focus lies on the right line choice, the exact braking point and the spot-on steering movement. All the everyday stress fades away, you feel free and only hear the precise sound of the freehub system. The E 1900 Spline was developed precisely for these freewheeling moments. A proven aluminum rim, a Ratchet LN freewheel system and hand-laced steel spokes provide the reliability required from an Enduro wheel. Start your EWS career!

  • Hub type 370 with Ratchet LN 18
  • Rim Aluminum, Hooked / Crotchet tubeless TC
  • Inner width 30 mm
  • Spokes DT champion® straightpull
Technologies

1900 spline

For freewheeling moments.

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Tubeless
Technology

Read

Bearing
technology

Learn more

Prolock
Technology

Read

experienced
handbuilding

ratchet ln
TECHNOLOGY

engagement angle
technology

Learn more
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

03

Axle system

04

Built-in dimension

05

Freehub body

There are 22 models of this product.
Show all
Hide all
Zoom image

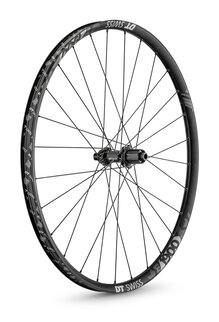

REAR WHEEL

E 1900 SPLINE 29 - 30 mm IS 12/148 mm Shimano

W0E1900TFD2SA18820
General
  • Net weight 1126 g
  • recommended system weight max. 130 kg
  • ASTM classification 4
Rim Hub Spokes & Nipples Inclusive
  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 29 - 30 mm IS 12/148 mm Shimano

W0E1900TFDLSA18821

  • Net weight 1140 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 29 - 30 mm IS 12/148 mm Sram

W0E1900TFDRSA18822

  • Net weight 1117 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 29 - 30 mm CL 12/142 mm Shimano

W0E1900NEDLSA18867

  • Net weight 1125 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 29 - 30 mm CL 12/142 mm Sram

W0E1900NEDRSA20533

  • Net weight 1102 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 29 - 30 mm CL 12/148 mm Shimano

W0E1900TED2SA18816

  • Net weight 1117 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 29 - 30 mm CL 12/148 mm Shimano

W0E1900TEDLSA18817

  • Net weight 1131 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 29 - 30 mm CL 12/148 mm Sram

W0E1900TEDRSA18818

  • Net weight 1108 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm IS 12/148 mm Shimano

W0E1900THD2SA18812

  • Net weight 1076 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm IS 12/148 mm Shimano

W0E1900THDLSA18813

  • Net weight 1090 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm IS 12/148 mm Sram

W0E1900THDRSA18814

  • Net weight 1067 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm CL 12/142 mm Shimano

W0E1900NGDLSA18846

  • Net weight 1077 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm CL 12/142 mm Sram

W0E1900NGDRSA20532

  • Net weight 1054 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm CL 12/148 mm Shimano

W0E1900TGD2SA18808

  • Net weight 1067 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm CL 12/148 mm Shimano

W0E1900TGDLSA18809

  • Net weight 1081 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

E 1900 SPLINE 27.5 - 30 mm CL 12/148 mm Sram

W0E1900TGDRSA18810

  • Net weight 1058 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image

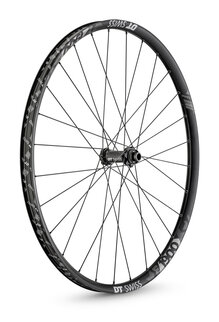

FRONT WHEEL

E 1900 SPLINE 29 - 30 mm IS 15/110 mm

W0E1900BFIXSA18819

  • Net weight 1005 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

E 1900 SPLINE 29 - 30 mm CL 15/100 mm

W0E1900AEIXSA18866

  • Net weight 990 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

E 1900 SPLINE 29 - 30 mm CL 15/110 mm

W0E1900BEIXSA18815

  • Net weight 996 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

E 1900 SPLINE 27.5 - 30 mm IS 15/110 mm

W0E1900BHIXSA18811

  • Net weight 955 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

E 1900 SPLINE 27.5 - 30 mm CL 15/100 mm

W0E1900AGIXSA18845

  • Net weight 940 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

E 1900 SPLINE 27.5 - 30 mm CL 15/110 mm

W0E1900BGIXSA18807

  • Net weight 946 g
  • recommended system weight max. 130 kg
  • ASTM classification 4

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm

WHEEL GUIDES

Each rim has its own specific characteristics. Find out what suits your needs the best!
