H 1900 SPLINE®

A reliable aluminum wheelset now with Ratchet LN Technology for extended eMTB tours.

  • MSRP per set US$ from $ 636
  • Weight per set from 2066 g
Product details

Product details

When motor assistance and leg power meet, the range of terrain a bike can conquer grows almost exponentially. The H 1900 SPLINE is designed for this, now upgraded with the famous DT Swiss Ratchet technology. The Ratchet LN system distributes the combined forces from the rider and the motor over a larger area than the previous pawl freehub systems, increasing the systems’ durability thanks to lower load peaks. The 370 hub enables full power transmission to the ground with reinforced hybrid spokes laced to a resistant aluminum rim, available in two inner widths.

  • Hub type 370 with Ratchet LN 18
  • Rim Aluminum, Hooked / Crotchet tubeless TC
  • Inner width 30 mm, 35 mm
  • Spokes DT hybrid 1
Rim An aluminum, hooked, tubeless ready rim available in 30 or 35 mm of inner width and in 29” or 27.5”.
FREEHUB BODY The cassette interface of the freehub body is optimized with a specific hardened steel for the higher loads that occur on eMTBs.
RATCHET LN First wheel equipped with the Ratchet LN system, for force distribution over a larger area, increasing durability.
BRAKE INTERFACE The brake interface is available in center lock or IS (6 bolt).
spokes DT Hybrid 1 spokes are reinforced and increase the lateral and torsional stiffness of the wheel.
Technologies

HYBRID MTB
BUILT TO EXTEND

The DT Swiss mission to bring e-bike riders the components they need continues and now becomes even broader.

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Tubeless
Technology

Read

engagement angle
technology

Learn more

ratchet ln
TECHNOLOGY

Bearing
technology

Learn more

Prolock
Technology

Read
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim Diameter

02

Inner Width

03

Axle system

04

Built-in dimension

05

Freehub body

06

Brake Interface

There are 32 models of this product.
Show all
Hide all
Zoom image

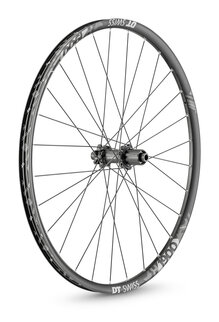

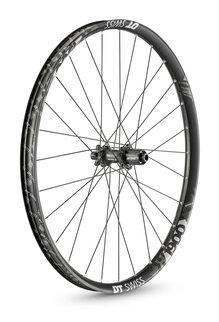

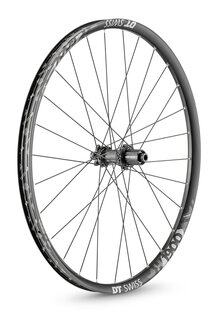

REAR WHEEL

H 1900 SPLINE 29 - 30 mm IS 12/148 mm SRAM

W0H1900TFDNSA18348
General
  • Net weight 1161 g
  • recommended system weight max. 150 kg
  • ASTM classification 4
Rim Hub Spokes & Nipples
  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu
Inclusive
  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 30 mm IS 12/148 mm Shimano

W0H1900TFD3SA18346

  • Net weight 1174 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 30 mm IS 12/148 mm Shimano

W0H1900TFDSSA18347

  • Net weight 1192 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 30 mm CL 12/148 mm SRAM

W0H1900TEDNSA18344

  • Net weight 1153 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 30 mm CL 12/148 mm Shimano

W0H1900TED3SA18342

  • Net weight 1166 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 30 mm CL 12/148 mm Shimano

W0H1900TEDSSA18343

  • Net weight 1184 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 30 mm IS 12/148 mm SRAM

W0H1900THDNSA18340

  • Net weight 1109 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 30 mm IS 12/148 mm Shimano

W0H1900THD3SA18338

  • Net weight 1122 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 30 mm IS 12/148 mm Shimano

W0H1900THDSSA18339

  • Net weight 1140 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 30 mm CL 12/148 mm SRAM

W0H1900TGDNSA18336

  • Net weight 1101 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 30 mm CL 12/148 mm Shimano

W0H1900TGD3SA18334

  • Net weight 1114 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 30 mm CL 12/148 mm Shimano

W0H1900TGDSSA18335

  • Net weight 1132 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 35 mm IS 12/148 mm SRAM

W0H1900TFDNSA18364

  • Net weight 1221 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 35 mm IS 12/148 mm Shimano

W0H1900TFD3SA18362

  • Net weight 1234 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 35 mm IS 12/148 mm Shimano

W0H1900TFDSSA18363

  • Net weight 1252 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 35 mm CL 12/148 mm SRAM

W0H1900TEDNSA18360

  • Net weight 1213 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 35 mm CL 12/148 mm Shimano

W0H1900TED3SA18358

  • Net weight 1226 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 29 - 35 mm CL 12/148 mm Shimano

W0H1900TEDSSA18359

  • Net weight 1244 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 35 mm IS 12/148 mm SRAM

W0H1900THDNSA18356

  • Net weight 1164 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 35 mm IS 12/148 mm Shimano

W0H1900THD3SA18354

  • Net weight 1177 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 35 mm IS 12/148 mm Shimano

W0H1900THDSSA18355

  • Net weight 1195 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 35 mm CL 12/148 mm SRAM

W0H1900TGDNSA18352

  • Net weight 1156 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 35 mm CL 12/148 mm Shimano

W0H1900TGD3SA18350

  • Net weight 1169 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
REAR WHEEL

H 1900 SPLINE 27.5 - 35 mm CL 12/148 mm Shimano

W0H1900TGDSSA18351

  • Net weight 1187 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image

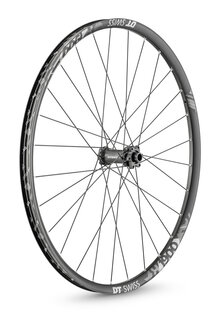

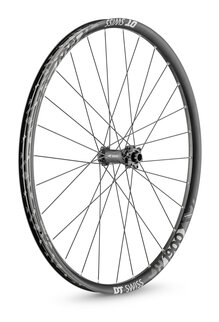

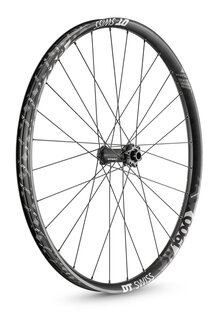

FRONT WHEEL

H 1900 SPLINE 29 - 30 mm IS 15/110 mm

W0H1900BFIXSA18345

  • Net weight 1026 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

H 1900 SPLINE 29 - 30 mm CL 15/110 mm

W0H1900BEIXSA18341

  • Net weight 1018 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

H 1900 SPLINE 27.5 - 30 mm IS 15/110 mm

W0H1900BHIXSA18337

  • Net weight 973 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

H 1900 SPLINE 27.5 - 30 mm CL 15/110 mm

W0H1900BGIXSA18333

  • Net weight 965 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

H 1900 SPLINE 29 - 35 mm IS 15/110 mm

W0H1900BFIXSA18361

  • Net weight 1086 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

H 1900 SPLINE 29 - 35 mm CL 15/110 mm

W0H1900BEIXSA18357

  • Net weight 1078 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Spokes left DT hybrid 1
  • Spokes right DT hybrid 1
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    Tubeless valve MTB 32 mm
Zoom image
FRONT WHEEL

H 1900 SPLINE 27.5 - 35 mm IS 15/110 mm

W0H1900BHIXSA18353

  • Net weight 1028 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Material Aluminum
  • Rim joint Sleeve joint
  • Tire interface Hooked / Crotchet tubeless TC
