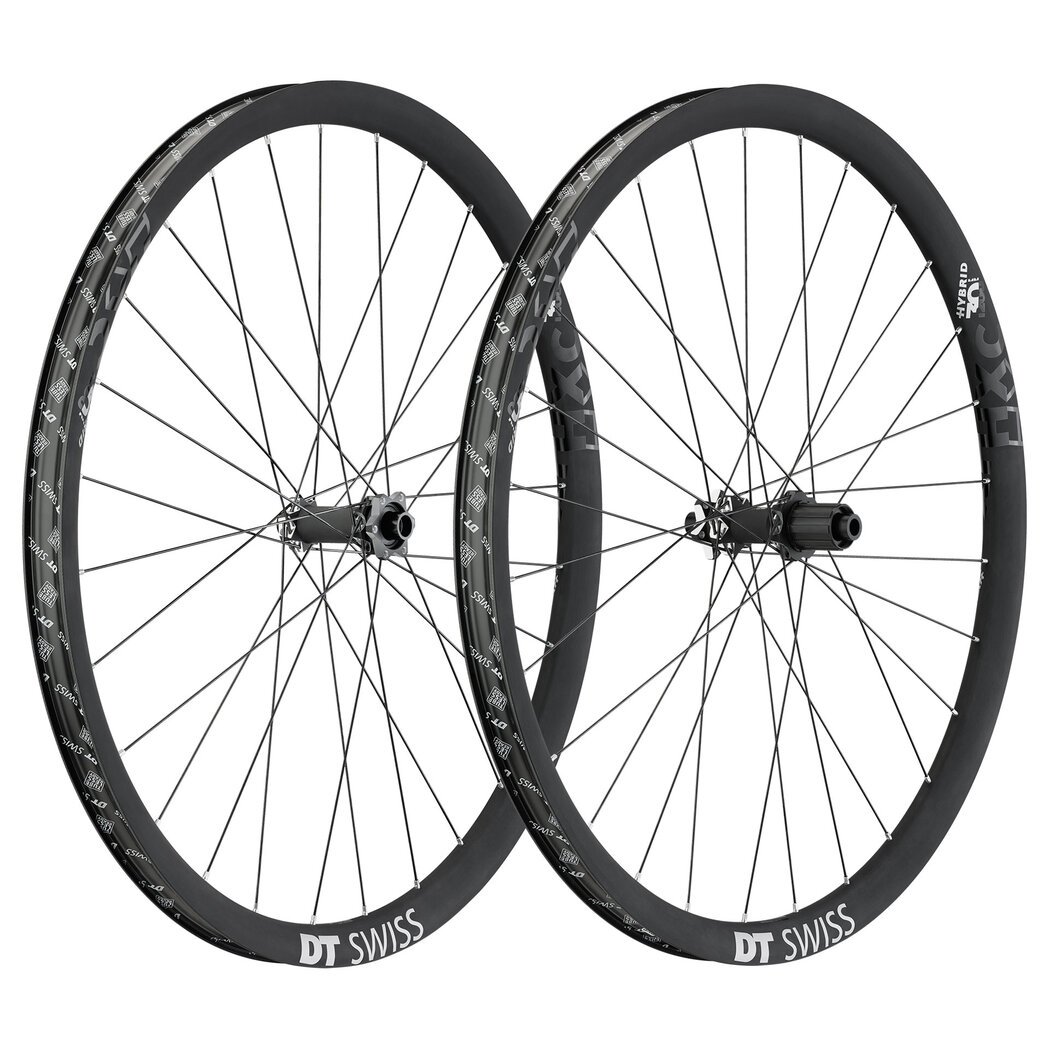

HXC 1200 SPLINE®
The most exclusive eMTB specific wheelset out there.
- MSRP per set US$ from $ 2847
- Weight per set from 1664 g
Product details
The best of the best. Where do you start? At the center: A super reliable straight pull spoke interface. Lightweight spokes that are eMTB strong. A stiff, precise full carbon hookless rim. But the whole really is even greater than the sum of its parts with the HXC 1200 SPLINE, it's a wheel that accelerates like no other, has traction like no other and is precise like no other. Out on the trail it is an absolute blast!
- Hub type 240 with Ratchet System 24
- Rim Carbon, Tubeless str side/hookless TSS
- Inner width 30 mm
- Spokes DT hybrid 2
Model finder
Just a few clicks to find your model. Please use the filter below.

HXC 1200 SPLINE 29 - 30 mm IS 12/148 mm Shimano
WHXC120TFD3CA10109- Net weight 968 g
- recommended system weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Tire interface Tubeless str side/Hookless TSS
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB/road 40 mm
tools
wheel bag

HXC 1200 SPLINE 29 - 30 mm IS 12/148 mm Shimano
WHXC120TFDBCA06086- Net weight 982 g
- recommended system weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Tire interface Tubeless str side/Hookless TSS
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB/road 40 mm
Sram XD freehub body kit
tools
wheel bag

HXC 1200 SPLINE 27.5 - 30 mm IS 12/148 mm Shimano
WHXC120THD3CA10107- Net weight 924 g
- recommended system weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Tire interface Tubeless str side/Hookless TSS
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB/road 40 mm
tools
wheel bag

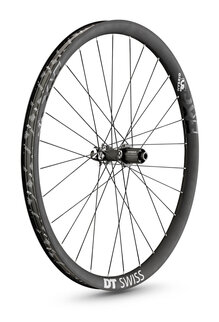

HXC 1200 SPLINE 27.5 - 30 mm IS 12/148 mm Shimano
WHXC120THDBCA00773- Net weight 938 g
- recommended system weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Tire interface Tubeless str side/Hookless TSS
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB/road 40 mm
Sram XD freehub body kit
tools
wheel bag

HXC 1200 Spline 29 - 30 mm IS 15/110 mm
WHXC120BFIXCA06083- Net weight 784 g
- recommended system weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Tire interface Tubeless str side/Hookless TSS
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB/road 40 mm
tools
wheel bag

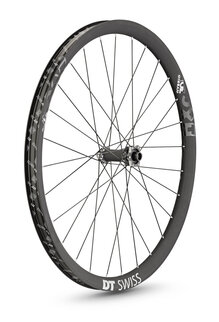

HXC 1200 Spline 27.5 - 30 mm IS 15/110 mm
WHXC120BHIXCA00772- Net weight 740 g
- recommended system weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Tire interface Tubeless str side/Hookless TSS
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB/road 40 mm
tools
wheel bag
Product support
Manuals, spareparts & conversion.
According to your selection HXC 1200 SPLINE® we found 6 models. Select the model for which you need product support.
