D 232
60mm travel for the extra XC performance
- MSRP US$ from $ 336
- Net weight from 416 g
- from € 336
- from CHF 354
Product details

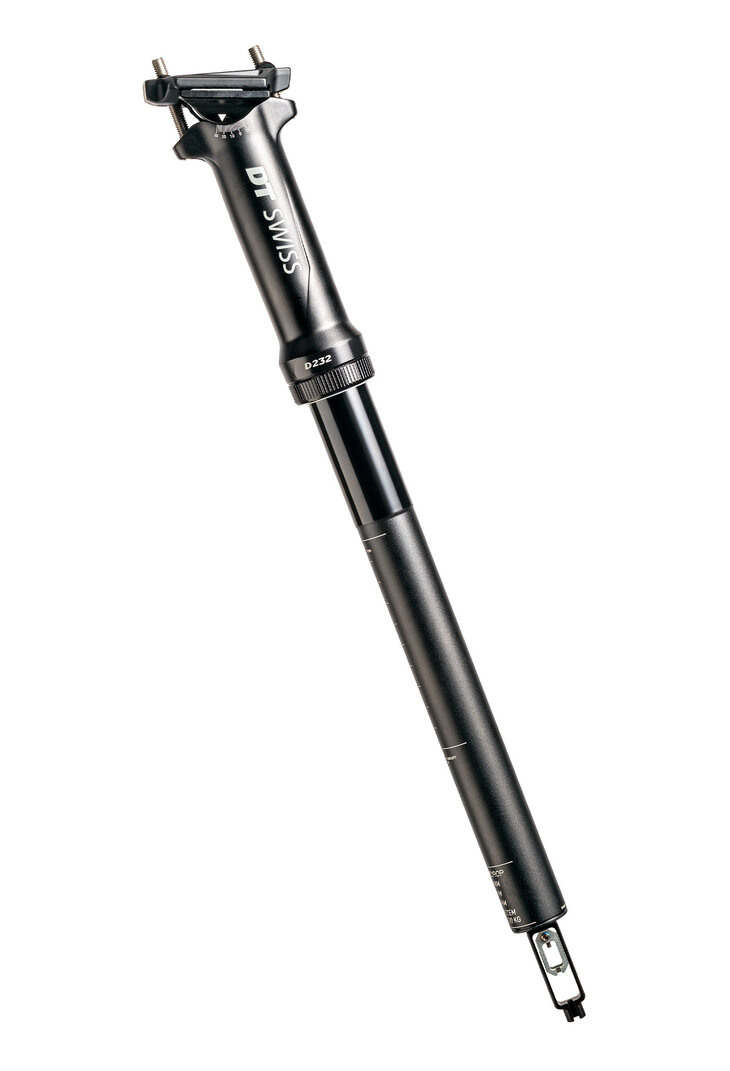

The D 232 offers everything you could want from a cross country dropper seat post. The 60 mm travel delivers extra performance when it comes to technical passages. The fully mechanical system is not only reliable and easy to maintain, the UPSIDEDROP technology also makes a weight of just 416 g possible.
- Stroke 60 mm
- Material saddle clamp Aluminum
- Material seat tube Aluminum
Model finder
Just a few clicks to find your model. Please use the filter below.
Zoom image

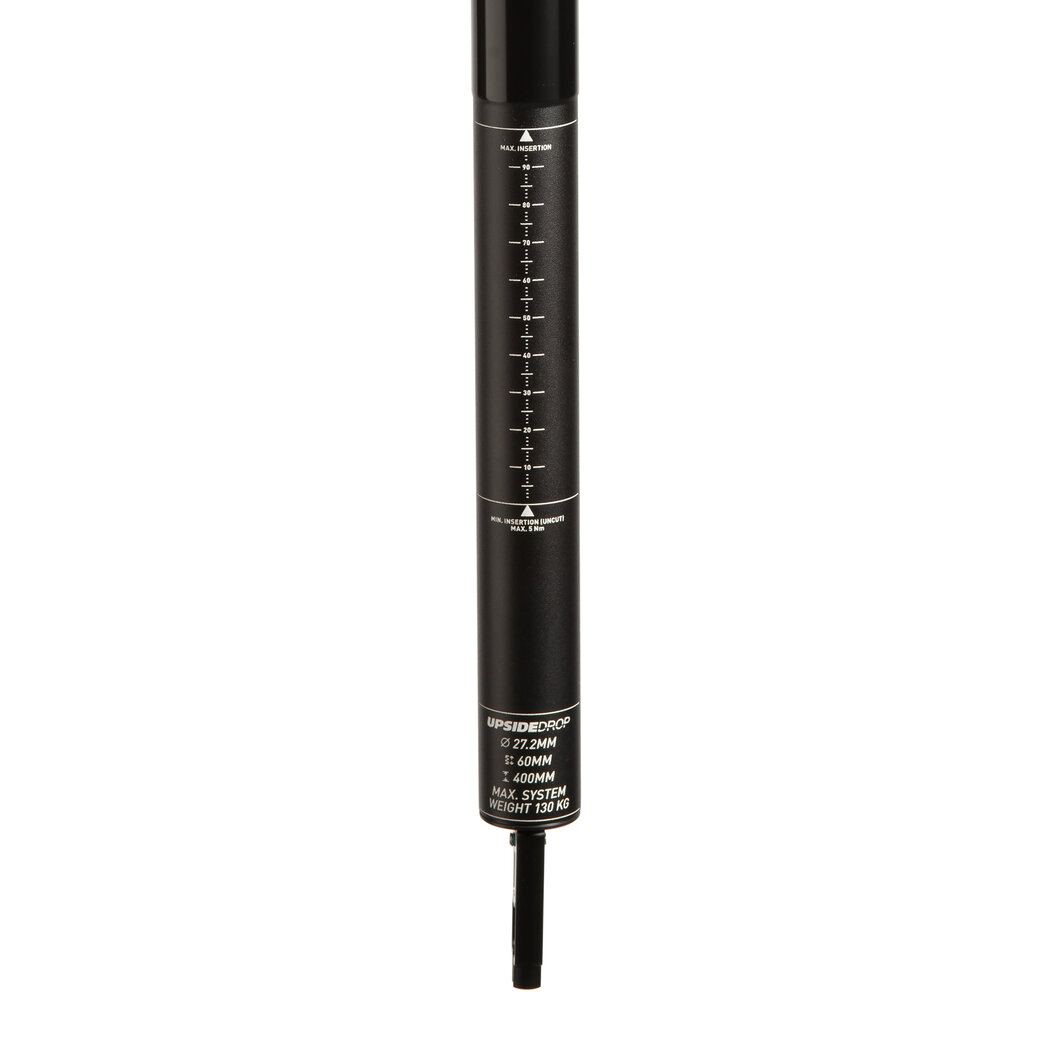

D 232 Ø 27.2 mm 60 mm
D232XDKAADSA29730S- Net weight 416 g
- Max. System weight MTB 130 kg
- ASTM classification MTB 3
- Stroke [A] 60 mm
- Seat tube diameter 27.2 mm
- Material saddle clamp Aluminum
- Material seat tube Aluminum
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm

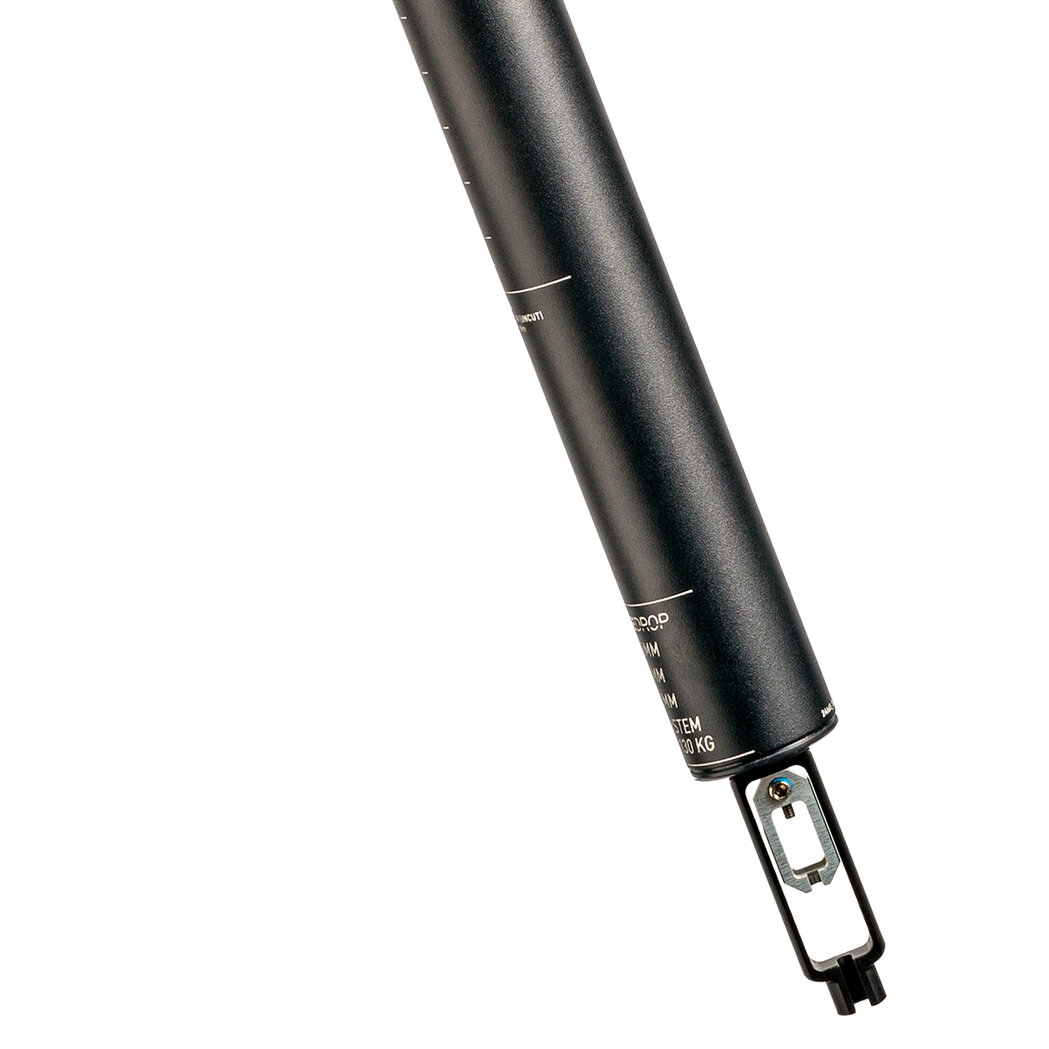

- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down

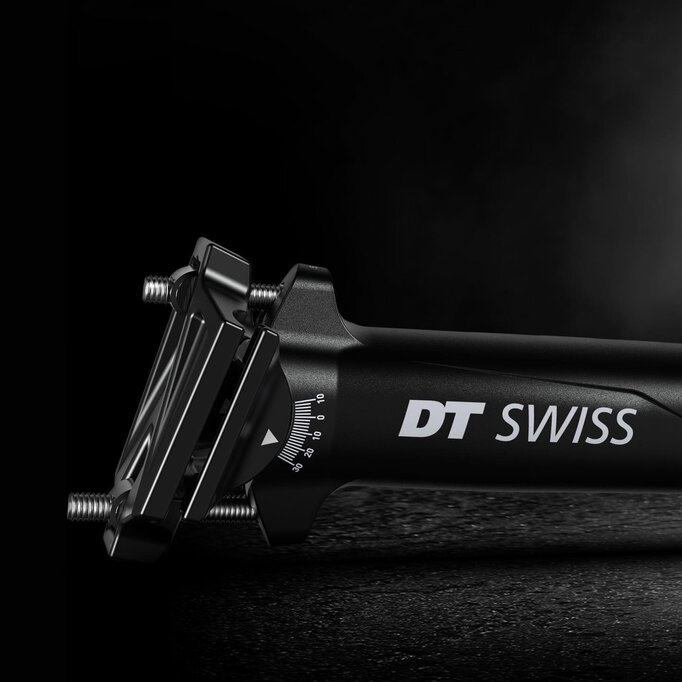

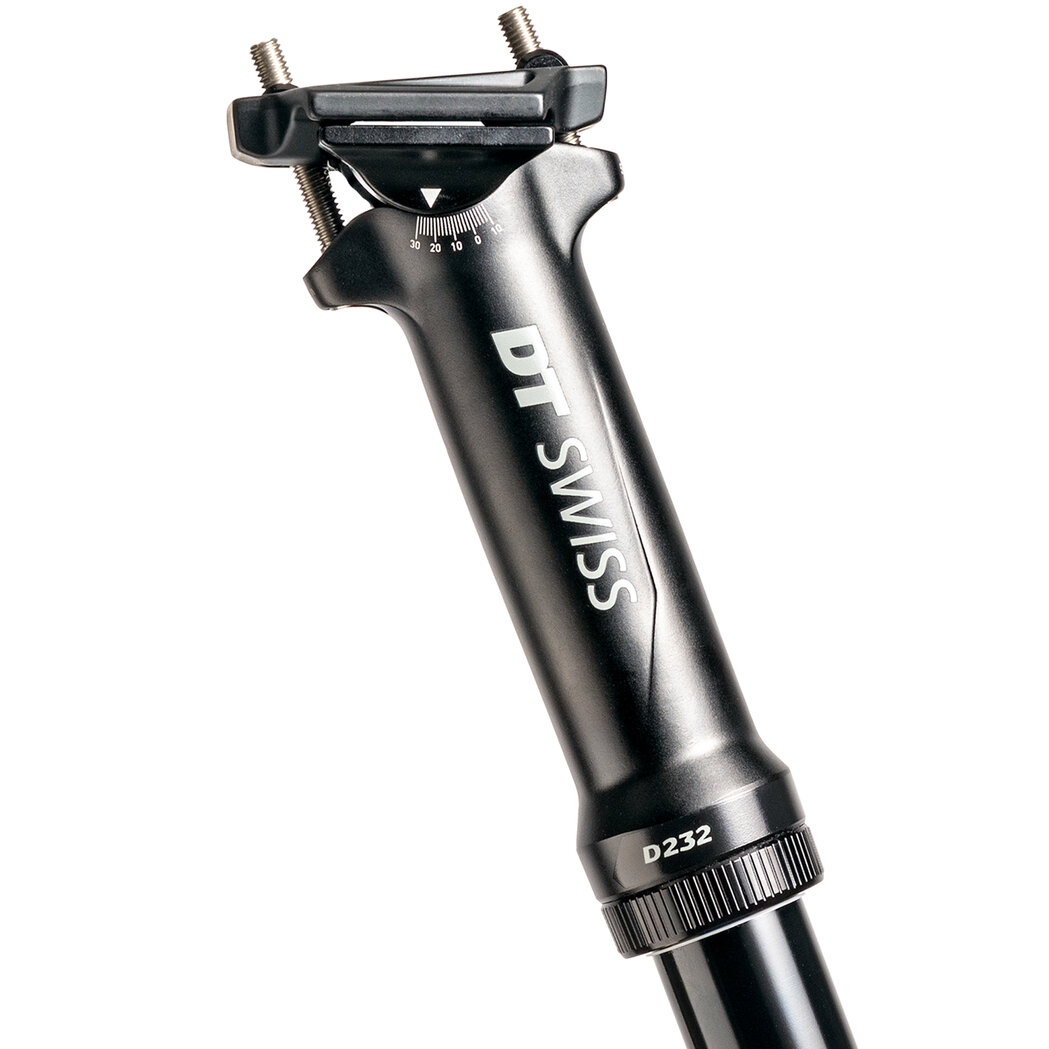

- Saddle clamp 2-Bolt vertical
-
Inclusive
No Carbon Paste

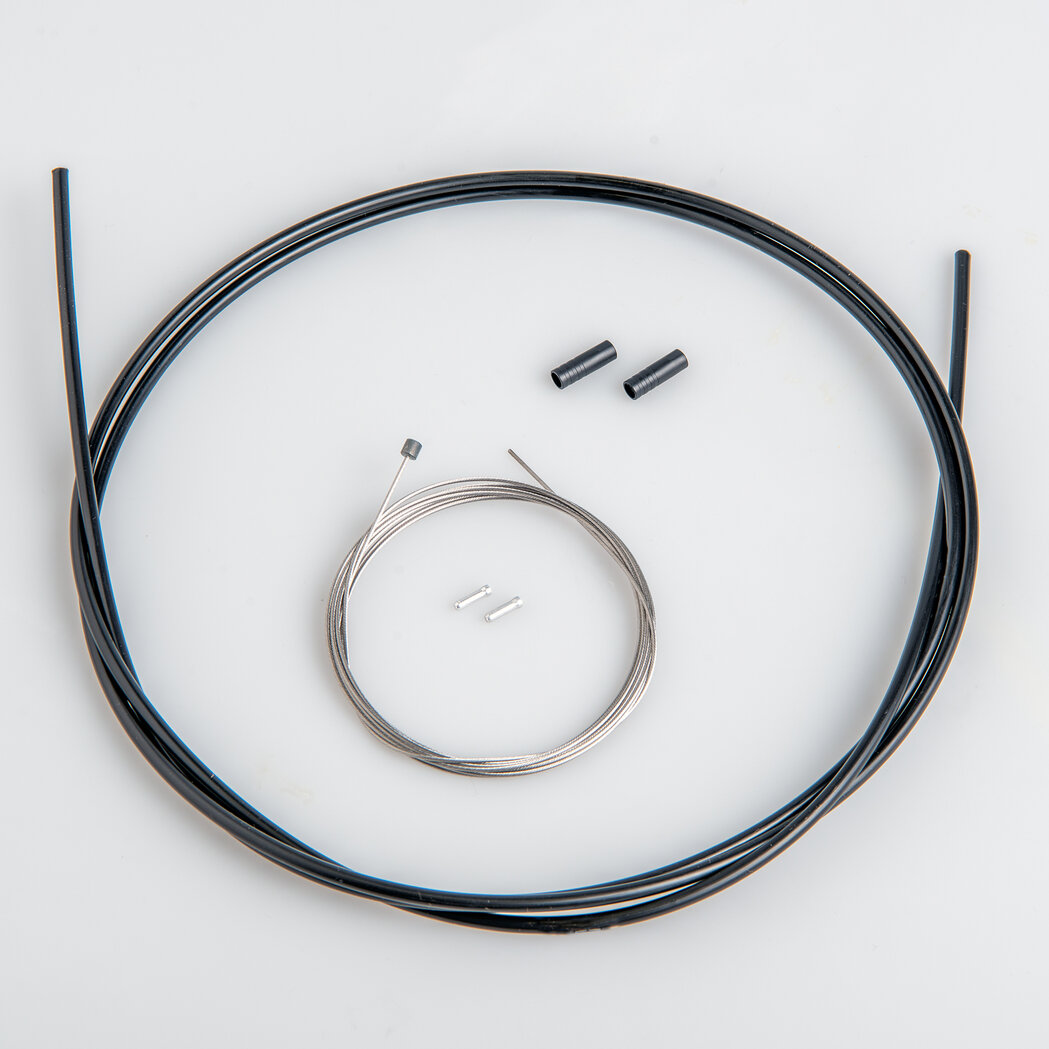

Cable with cable end crimps

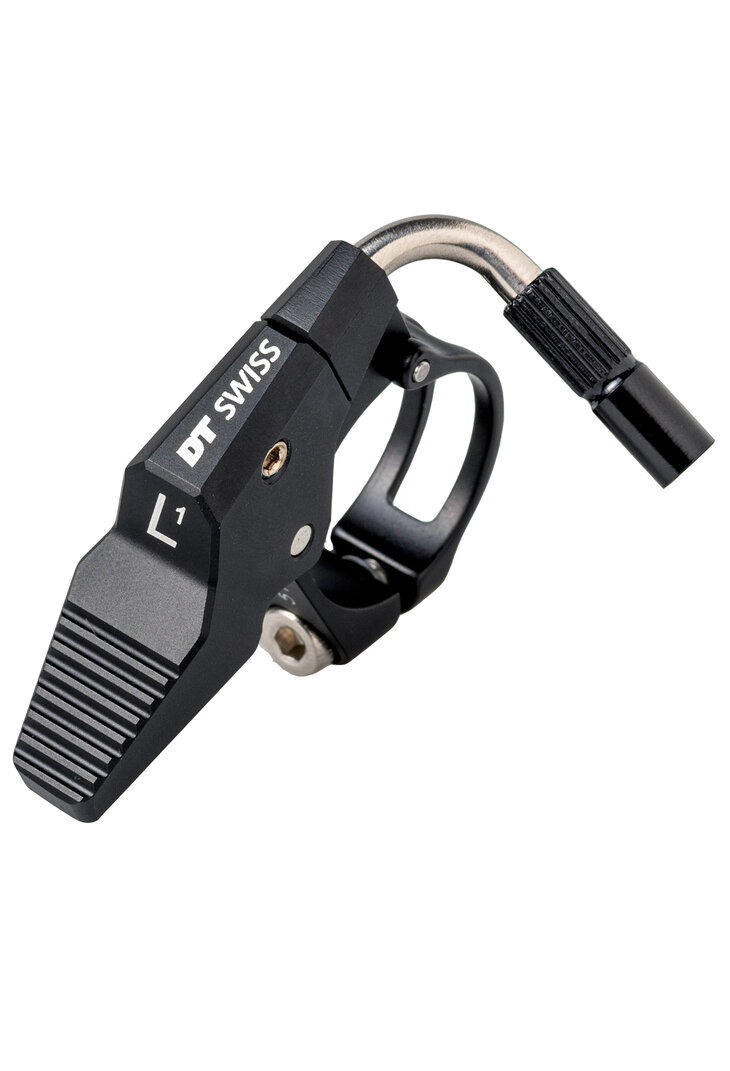

L1 Remote Lever
Zoom image
D 232 Ø 27.2 mm 60 mm
D232XDKAAESA35558S- Net weight 416 g
- Max. System weight MTB 130 kg
- ASTM classification MTB 3
- Stroke [A] 60 mm
- Seat tube diameter 27.2 mm
- Material saddle clamp Aluminum
- Material seat tube Aluminum
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
No Carbon Paste
Cable with cable end crimps
L1 Trigger handle bar clamp
Zoom image
D 232 Ø 27.2 mm 60 mm
D232XDKAAESA35557S- Net weight 416 g
- Max. System weight MTB 130 kg
- ASTM classification MTB 3
- Stroke [A] 60 mm
- Seat tube diameter 27.2 mm
- Material saddle clamp Aluminum
- Material seat tube Aluminum
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
No Carbon Paste
Cable with cable end crimps
L1 Trigger Matchmaker
Zoom image
D 232 Ø 30.9 mm 60 mm
D232XDKBADSA29733S- Net weight 416 g
- Max. System weight MTB 130 kg
- ASTM classification MTB 3
- Stroke [A] 60 mm
- Seat tube diameter 30.9 mm
- Material saddle clamp Aluminum
- Material seat tube Aluminum
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
No Carbon Paste
Cable with cable end crimps
L1 Remote Lever
Zoom image
D 232 Ø 30.9 mm 60 mm
D232XDKBAESA35554S- Net weight 416 g
- Max. System weight MTB 130 kg
- ASTM classification MTB 3
- Stroke [A] 60 mm
- Seat tube diameter 30.9 mm
- Material saddle clamp Aluminum
- Material seat tube Aluminum
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
No Carbon Paste
Cable with cable end crimps
L1 Trigger handle bar clamp
Zoom image
D 232 Ø 30.9 mm 60 mm
D232XDKBAESA35553S- Net weight 416 g
- Max. System weight MTB 130 kg
- ASTM classification MTB 3
- Stroke [A] 60 mm
- Seat tube diameter 30.9 mm
- Material saddle clamp Aluminum
- Material seat tube Aluminum
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
No Carbon Paste
Cable with cable end crimps
L1 Trigger Matchmaker
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection D 232 we found 6 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
Check that the dropper post is installed correctly and that the Bowden cable is running freely with the right tension and that there are no kinks. Check page 24 of the manual. If you cannot rectify the problem yourself, please contact our Service Center and send the dropper post and accessories (Bowden cable and remote lever) to us for testing. We will sort the problem out for you.
-
